Leading Manufacturers, Exporters and Wholesaler of HTHP Beaker Dyeing Machine, HTHP Horizontal Dyeing Machine, HTHP Pilot Dyeing Machine, HTHP Vertical Dyeing Machines and HTHP Beam Dyeing Machine from Navi Mumbai.
Based in Mumbai (India), we are renowned for manufacturing best HTHP Beaker Dyeing Machines having 6 or 12 beakers with capacity of 500cc or 250cc each! They come along with pressure tight caps having Teflon gaskets. Every Machine design is in adherence to the set industry guidelines. Moreover, we export and supply them in timely manner to different global destinations at affordable prices. Customization requests are accepted.
Application : Used for sampling and shade matching of yarn and fabrics with temperatures up to 1350C.
Salient Features :
All the beakers (of 250 cc) are made from solid bar and hence here are no weld joints. These are not made from pipes y welding the bottom. This ensures long life and no leakages even after many years of use.
The gear motor of 0.5HP/32rpm is from most reputed manufacturers for noise free and maintenance free operation.
A choice of heating arrangements with either electrical, steam or thermik fluid system.
Table top model for ease operation, without requirement of a platform.
Machines with more or less number of beakers, of larger or smaller size can also be made as per customer’s requirement.
Pneumatic press consist of header with a pneumatic cylinder with movement in X and Y axis.
Pressing head and guide rods are provided as per the application to meet the particular needs of any pressing process.
Gear motor is provided in the trolley for rotational movement of the carrier.
Economical and eco-friendly HTHP Horizontal Dyeing Machine saves you from installation hassles by giving easing mounting facility even on mezzanine of higher floors. These Horizontal Tubular Type Dyeing Machines comes in standard capacities from 20 kgs to 320 kgs per batch, but we also provide with Made-to-Order Machines. Owing to our large distribution network across the world, we make quick deliveries! We are the Manufacturer, Supplier and Exporter of HTHP Horizontal Dyeing Machine from India.
Application : The machine is suitable for dyeing all types of yarn in package form. It is also suitable for dyeing zippes tapes, small width fabrics & warp beams.
Salient features of Texfab tubular dyeing machines :
Works on very low liquor ratio of 1:3.5 upwards depending on nature of yarn & loading factor. Low liquor ratio results in proportionately large savings of water, heat energy, chemicals & effluent treatment cost.
Variable loading possible from 50% upwards of the rated capacity without using dummies.
Works on airpad dyeing system, resulting in saving cooling water, heat & electrical energy.
Opening closing and locking/unlocking is done, simultaneously and automatically by electro pneumatic devices with complete safety.
Many optional features are offered to suit varying requirements of the customers like pressure extraction of water, thermo flush, PH monitoring and more.
Machines working on gas (CNG) with burner fitted ( without the need of steam or boiler) can also be offered.
Variable loading possible from 50 % upwards of the rated capacity with almost constant liquor ratio without using any dummies.
Heat exchanger is coil type, directly fitted inside the color addition tank resulting in most efficient and fast heat transfer.
The tubes are fully flooded but still works on air pad dyeing system. Thus saving cooling water, heat energy and electrical energy.
Opening/closing and locking/unlocking of all tube lids is done simultaneously and automatically by electro-pneumatic devices.
Design ensures complete drain of liquor from the machine every time. Thus, preventing accumulation of dye deposits inside the machine and contamination.
Machines are available in semi-auto or fully-auto mode of operation. The operations automated include fill, circulation, color / chemical dosing, drain & uninterrupted sequence of operations, besides controlled heating & cooling.
Specially developed dedicated PLC with microprocessor, live mimic and liquid crystal display (LCD) to indicate all process parameters, for better control and easy operation
Many optional features are offered to suit the varying requirement of the customers like pressure extraction of water, thermo flush, ph monitoring, variable frequency drive and more.

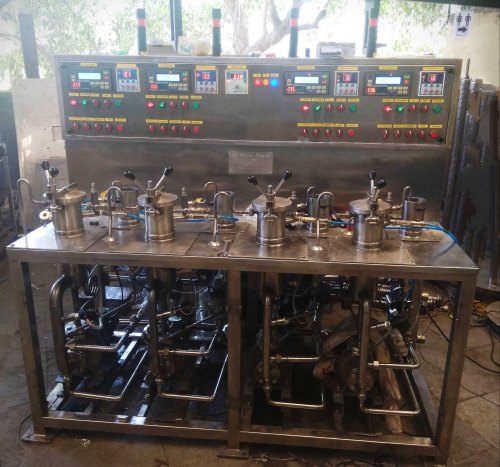

We are the Mumbai-based Manufacturer, Supplier and Exporter offering premium-quality HTHP Pilot Dyeing Machines that are used for dyeing all kinds of fibers & yarns. Our standard models have capacity of 200 grams to 5kgs/batch, but we can also custom-make for variegated clients’ needs! Every machine is duly examined before dispatch. We are known for reasonable pricing and prompt deliveries across India and overseas.
Salient Features :
The machines have all the features of any large capacity machine, including identical liquor ratio and other process control features for exact reproducibility of dyeing results in bulk.
Steam, thermik fluid or electrical heating system or dual systems can be offered.
Two or more machines can be offered on a common platform to save space.
The machines are table top models with integrated electrical control panel for ease of operation.
Located in Mumbai (India), we are famed for manufacturing comprehensive line of HTHP Vertical Dyeing Machines having capacities up to 1000 kilograms per batch. It facilitates pretreatment and after-treatment of almost every fabric including cotton, polyester, wool, acrylic and many more. We can supply and export them in India and overseas within stipulated time. Besides that, we can custom-make HTHP Vertical Dyeing Machines for our esteemed clients.
Application : Used for pretreatment, bleaching, dyeing and after treatment of packages, bobbins, beams loose fibre tops, muffs, hanks etc with appropriate material carriers.
Salient Features of Tex Fab make HTHP Vertical Dyeing machines :
Low liquor ratio 4 upwards.
Offered in either airpad dyeing system or fully flooded dyeing system on customer demand.
Variable loading facility at almost constant liquor rates without using dummies.
High capacity , High efficiency circulation pump of low noise, directly coupled to the motor, and special reversing device fitted below the dyeing vessel for flow , -reversal which is carried out with pump’s motor in operation.
The system avoids peak power absorption due to frequent motor restarting, eliminates water hamming effect on yarn packages, saves energy, minimizes break downs and gives better dyeing results with shorter dyeing cycles.
Semi- Automatic or fully automatic mode of operation. Semi Auto operation includes auto fill & drain, programmed dosing and auto sequencing of operations. Fully auto operation includes, in addition, inverter (VFD) with differential pressure control, parallel operation of dyeing vessel & stock tank, remote programming through PC, graphic display of process parameters & process history in memory.
The machines can be offered working directly on CNG ( compressed natural gas ) with burner fitted, for heating the dye liquor, so that no boiler or steam is required for running the machine. This revolutionary new idea has resulted in great savings in operating cost as well as capital cost of boiler, chimney & pipelines.
Multiple level safety features to make the machine operation totally safe.
Two machines of same capacity can be coupled to work as a single machine of double capacity.
We offer a mighty range of Beam Dyeing Machines that are reckoned around the globe for their exemplary heat transfer efficiency. The range encompasses HTHP Beam Dyeing Machine and Economical Beam Dyeing Machine! These are designed at par with the international quality standards. Standard capacity of up to 500Kgs/batch or custom capacity can be availed from us at affordable prices. We are the Beam Dyeing Machine’s Manufacturer, Exporter and Supplier from Mumbai, India.
Application : For dyeing and bleaching of all types of fabrics in open width form.
As the fabric wound on perforated beams is static, the even penetration of dye liquor ensures level dyeing and avoids damage to the fabrics. No wrinkles and crease marks on the fabrics. Suitable for delicate fabrics as well as heavy suiting’s.
The machine is suitable for working pressure upto 5 bar and temperature upto 1350C
Provided with ‘Airpad’ system for static pressure thus reducing the M:L ratio. (1:6 upwards)
High capacity high efficiency centrifugal pump with flow reversal device for both into out and out to in flow for achieving uniform dyeing results.
Internal heat exchanger of seamless tubes increases the heat transfer efficiency and causes least pressure drop in liquor flow.
Machine with various diameters and width with one or two beam in series are available as per customer’s requirement.
