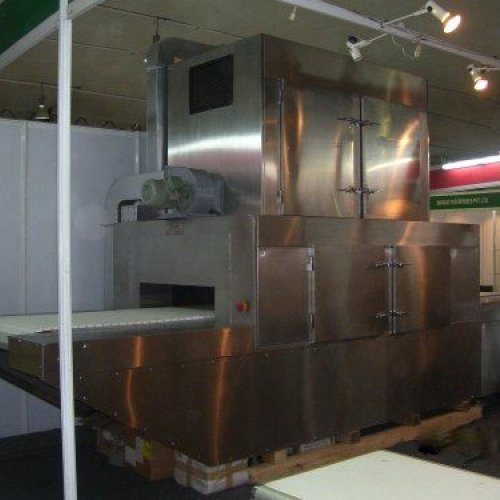

Radio Frequency Dryer




Get rid of excess water from different textile materials after bleaching, dyeing or other such processes with our supreme-quality Radio Frequency Dryer! We infuse them with latest technological features and best components, so that they yield uniform heating functions and user-friendly operations. Being a reputed Radio Frequency Dryer’s Manufacturer, Supplier and Exporter in India and overseas, we quote market-leading prices. Also, we execute prompt deliveries.


Highlights :

  • In a radio frequency heating/drying system, the RF generator creates an alternating electric field between two electrodes.
  • The material to be heated /dried is conveyed between the electrodes, where an alternating energy field causes polar molecules in the material to continuously reorient them to face opposite electrodes much like the way bar magnets move to face opposite poles in an alternating magnetic field.
  • Friction resulting from this molecular movement causes the material to rapidly heat throughout its entire mass.



Features of RF Drying :

  • Uniform heating resulting in level drying and controlled moisture content within ±1%.
  • Environment friendly. Clean and safe. No effluents and No flues.
  • Easy to feed, operate and maintain.
  • No need of steam or hot air. Self contained unit.
  • Superb consistent quality of dried material for feel and appearance. No chance of contamination, physical damage or colour migration.
  • Instant drying process. No startup and shutdown cost.



Application :

  • The RF dryer is widely used in Textile industry all over the world for drying the materials after bleaching, dyeing, mercerizing or wet processing after the initial hydro extraction process in a centrifuge to remove excess water.
  • Any textile material in the form of fibres, Cheeses, cones, hanks, tows & tops and fabrics can be dried in a RF dryer and over the years this technology has increasingly become an accepted and preferred method for drying.

Specifications

Type Dryer
Certification CE Certified
Application Industrial
Weight 1000-2000kg
Color Multi Colour
Voltage 220V
Automatic Grade Semi Automatic
Power 1-3kw, 12-15kw, 15-18kw, 18-21kw, 3-6kw
Driven Type Electric
Warranty 1year
